台式真空包装机

                                台式真空包装机

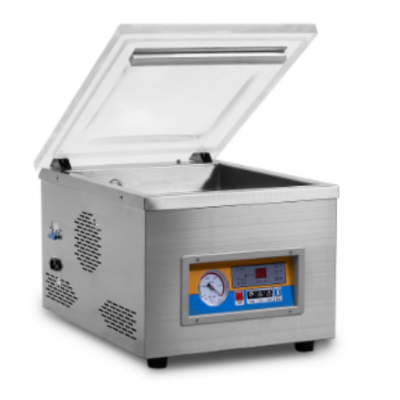

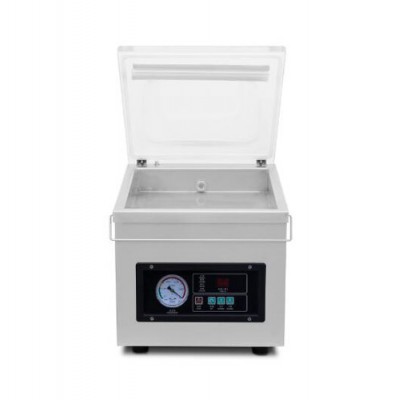

DZ-300/PD TABLE-STYLE VACUUM PACKAGING MACHINE

电源电压(v/Hz)voltage

AC220/50

真空泵电机功率(W)Motor Power

370

热封功率(W)Sealing Power

250

真空室zui低绝对压强(Kpa)Ultimate Vacuum Pressure

1

每室热封条数(pcs)No.of Sealing Bars for Each Chamber

1

真空室内尺寸(LxWxH)(mm)Chamber Dimension

380*325*50

热封条长度(mm)Sealing Length

260/300MM

热封宽度（mm)Sealing Width

10

真空泵排气量(m³/h)Vacuum Pump Rate

6.5

真空室材质Material for Vacuum Chamber

不锈钢Stainless steel  201

外形尺寸（LxWxH)(mm)Dimension

485*385*385

净重(kg)Net Weight

37

封口条到工作室之间的距离(mm)Distance from sealing bar to chamber side

330
